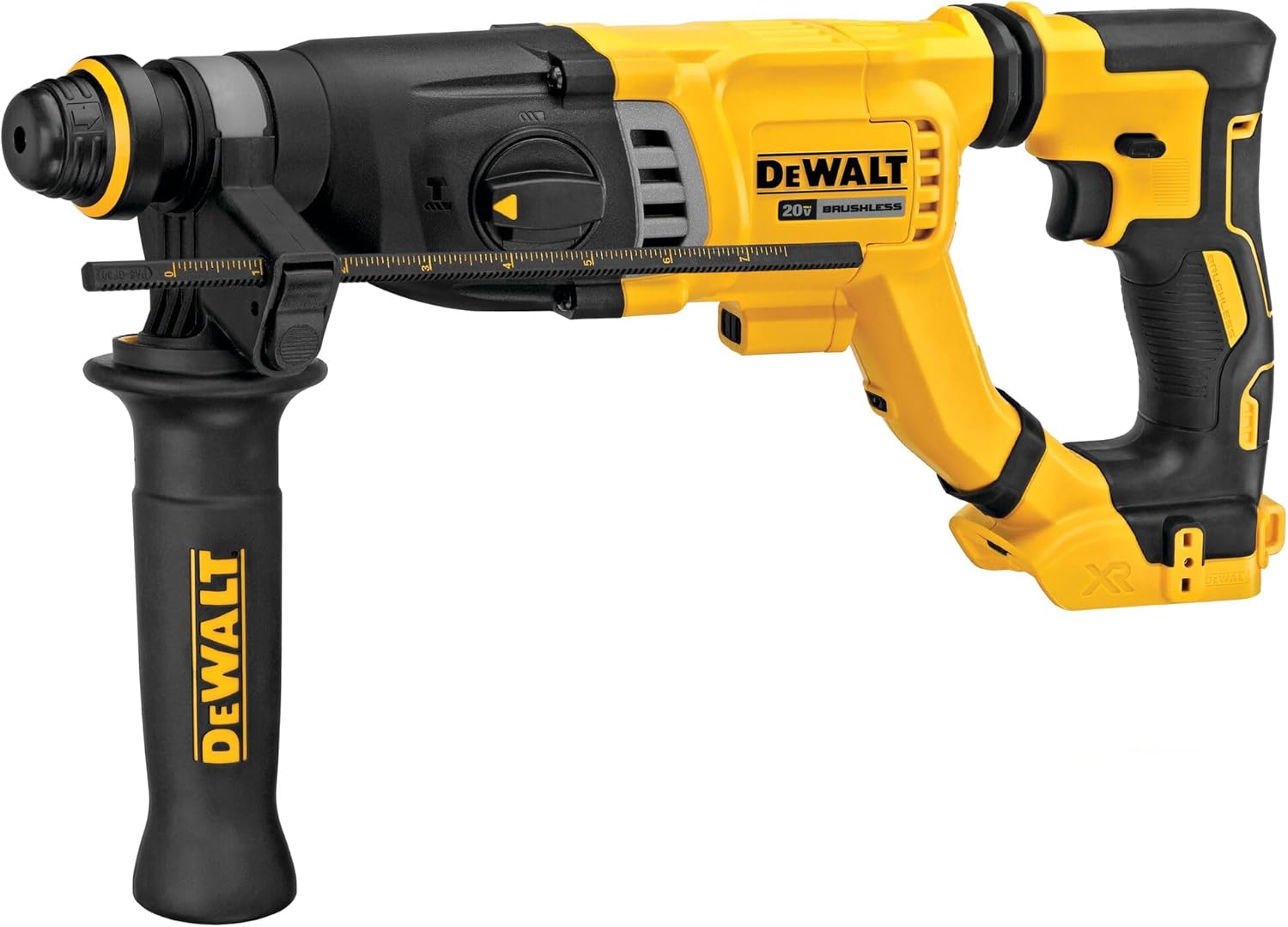

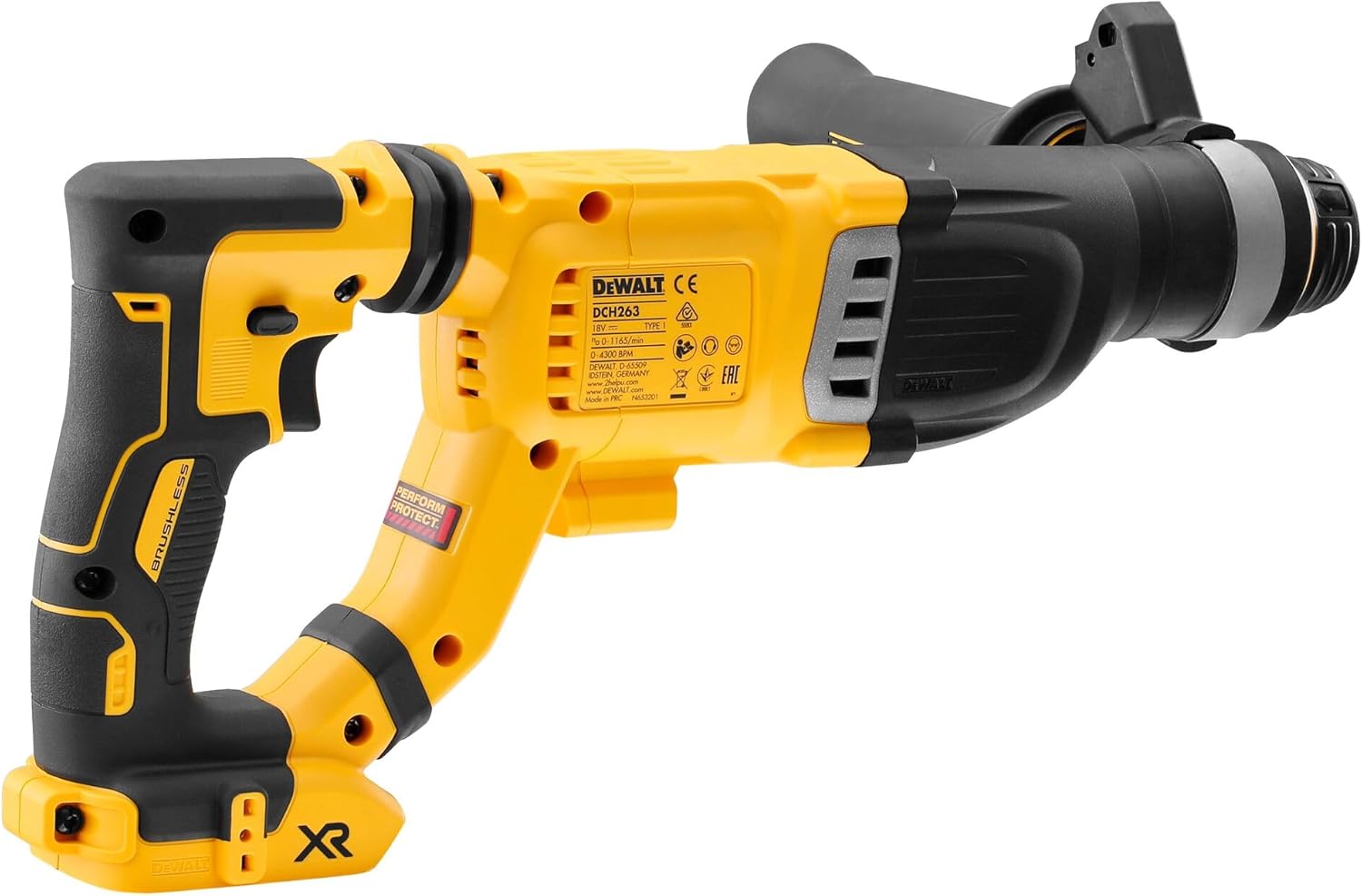

20V MAX* 1-1/8 in. Brushless Cordless SDS PLUS D-Handle Rotary Hammer (Tool Only)

Product Overview

The 20V MAX* Brushless 1-1/8 in. Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 3.0 Joules of impact energy. The lightweight design makes this tool ideal for forming, #3 to #5 post installed rebar dowelling, tilt wall support, rod hanging, beam & column anchorage, and steel stanchion mounting. It is part of the PERFORM and PROTECT™ product line, integrated with the SHOCKS ACTIVE VIBRATION CONTROL® System and becomes OSHA Table 1 Compliant when used with the DWH205DH On Board Extractor.

• 3.0 Joules of impact energy for fast drilling in concrete.
• SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
• Lightweight design makes this tool ideal for forming, #3 to #5 post installed rebar dowelling, tilt wall support, rod hanging, beam & column anchorage, and steel stanchion mounting.

Additional Features

• OSHA Table 1 Compliant when paired with DWH205DH On Board Extractor.
• Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
• Rotating Dial to set tool to a specific applicaiton mode - Drill, Hammer Drill, or Chip.

Applications

• Drilling holes for rebar dowels
• drilling holes for rod hanging anchors like Hangermate™, Snake™, Mini-Undercut™, and dropins.
• drilling holes for bracing applications with anchors like ScrewBolt+™
• Chipping overpour from wall
• chipping out overpour for cast in place anchors and lift hooks
• Chipping out mortar and brick in building restoration.

Includes

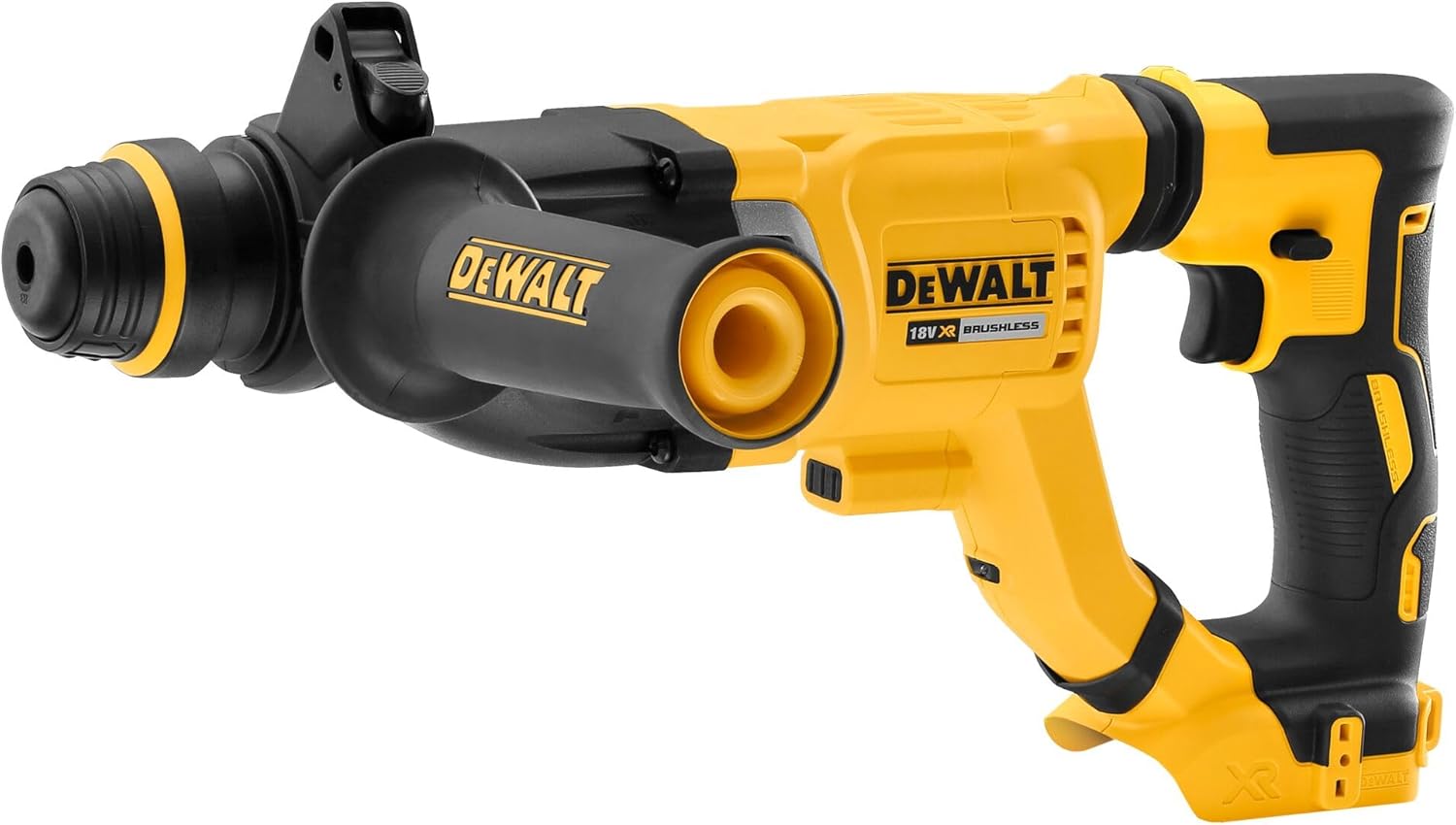

• (1) DCH263 Rotary Hammer
• (1) 360˚ Side Handle
• (1) Depth Rod
